Single acting cylinder,ram cylinder,plunge cylinder
| Place of Origin | China |
|---|---|
| Brand Name | Salid |
| Certification | ISO9001:2008 |
| Model Number | SP002 |
| Minimum Order Quantity | 20 |
| Price | 20 |
| Packaging Details | carton box and plywood case |
| Delivery Time | 25 work days |
| Payment Terms | T/T |
| Supply Ability | 5000per month |
Product Details
| Maximum Stroke | 16" | Standard Or Nonstandard | Standard |
|---|---|---|---|
| Structure | Plunger Cylinder | Power | Hydraulic |
| Body Material | Steel |
Product Description

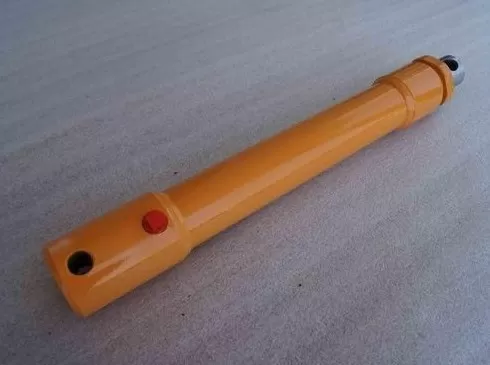

Single acting ram hydraulic cylinders
We Salid make kinds of hydraulic cylinders,single acting,double acting.
We supply the solutions depends on your machinery.
Single acting cylinder,ram cylinder,plunge cylinder,Cylinders for Snowplow Applications
| SPECIFICATION Dimensions | ||||||||||
| PART NO. | G | STROKE | A | B | C | F(D) | E | BORE | J | PORTS |
| SP-1506-0625 | 1-1/2" | 6" | 11-7/8" | 13-3/8" | 12" | 11/16" | 2" | 1-3/4" | 5/8" | NPT 1/4" |
| SP-1510-0625 | 1-1/2" | 10" | 15-7/8" | 17-5/8" | 16-1/4" | 11/16" | 2" | 1-3/4" | 5/8" | NPT 1/4" |
| SP-1512-0625 | 1-1/2" | 12" | 17-7/8" | 19-3/8" | 18" | 11/16" | 2" | 1-3/4" | 5/8" | NPT 1/4" |
| SP-2012-0625 | 2" | 12" | 17-1/4" | 19-1/2" | 18" | 3/4" | 2-3/16" | 2-1/4" | 5/8" | NPT 1/4" |
| SP-1506-0750 | 1-1/2" | 6" | 12-5/8" | 14-3/8" | 13" | 11/16" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1508-0750 | 1-1/2" | 8" | 14-5/8" | 16-5/8" | 15-1/4" | 11/16" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1510-0750 | 1-1/2" | 10" | 16-5/8" | 18-5/8" | 17-1/4" | 11/16" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1510-1000 | 1-1/2" | 10" | 16-5/8" | 18-5/8" | 17-1/2" | 11/16" | 2-3/4" | 1-3/4" | 1" | NPT 1/4" |
| SP-2006-0750 | 2" | 6" | 12-5/8" | 14-11/16" | 13-3/16" | 3/4" | 2-3/4" | 2-1/4" | 3/4" | NPT 1/4" |
| SP-2010-1000 | 2" | 10" | 16-5/8" | 18-5/8" | 17-1/4" | 11/16" | 2-3/4" | 2-1/4" | 1" | NPT 1/4" |
| SP-2016-1000 | 2" | 16" | 22-5/8" | 25" | 23-5/8" | 11/16" | 2-3/4" | 2-1/4" | 1" | NPT 1/4" |
| SP-1510-0750 | 1-1/2" | 10" | 16-5/8" | 18-1/2" | 17" | 3/4" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1512-0750 | 1-1/2" | 12" | 18-5/8" | 20-1/2" | 19" | 3/4" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1510-1000 | 1-1/2" | 10" | 16-3/8" | 18-3/4" | 17-1/4" | 3/4" | 2-11/16" | 1-3/4" | 1" | NPT 1/4" |
| SP-1512-1000 | 1-1/2" | 12" | 18-7/16" | 20-7/8" | 19-3/8" | 3/4" | 2-5/8" | 1-3/4" | 1" | NPT 1/4" |
| SP-2010-1000 | 2" | 10" | 16-1/8" | 18-3/4" | 17-1/4" | 3/4" | 1-23/32" | 2-1/4" | 1" | NPT 1/4" |
| SP-2016-1250 | 2" | 16" | 22-1/2" | 25" | 23-1/4" | 7/8" | 2-3/4" | 2-1/4" | 1-1/4" | NPT 1/4" |
