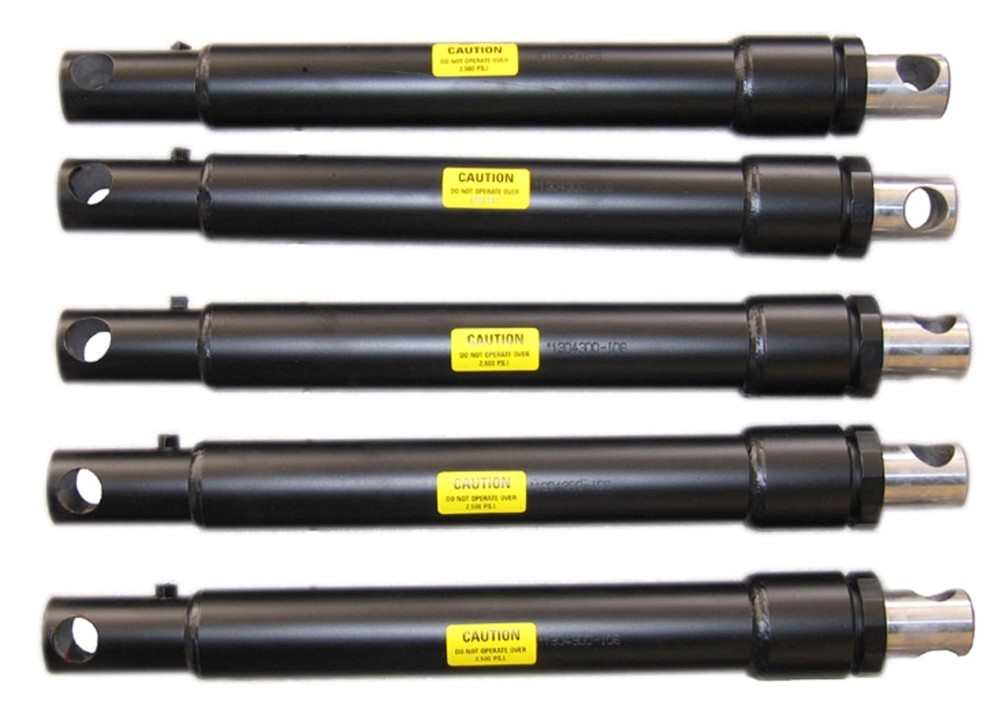

Single acting cylinder,ram cylinder,plunge cylinder,Cylinders for Snowplow Applications
| Place of Origin | China |
|---|---|
| Brand Name | Salid |
| Certification | ISO9001:2008 |
| Model Number | SP001 |
| Minimum Order Quantity | 20 |
| Price | 20 |
| Packaging Details | plywood case or steel case |
| Delivery Time | 25 work days |
| Payment Terms | T/T |
| Supply Ability | 5000per month |
Product Details
| Maximum Stroke | 16 | Standard Or Nonstandard | Standard |
|---|---|---|---|
| Structure | Plunger Cylinder | Power | Hydraulic |
| Body Material | Steel |
Product Description
Single acting cylinder,ram cylinder,plunge cylinder,Cylinders for Snowplow Applications
| SPECIFICATION Dimensions | ||||||||||
| PART NO. | G | STROKE | A | B | C | F(D) | E | BORE | J | PORTS |
| SP-1506-0625 | 1-1/2" | 6" | 11-7/8" | 13-3/8" | 12" | 11/16" | 2" | 1-3/4" | 5/8" | NPT 1/4" |
| SP-1510-0625 | 1-1/2" | 10" | 15-7/8" | 17-5/8" | 16-1/4" | 11/16" | 2" | 1-3/4" | 5/8" | NPT 1/4" |
| SP-1512-0625 | 1-1/2" | 12" | 17-7/8" | 19-3/8" | 18" | 11/16" | 2" | 1-3/4" | 5/8" | NPT 1/4" |
| SP-2012-0625 | 2" | 12" | 17-1/4" | 19-1/2" | 18" | 3/4" | 2-3/16" | 2-1/4" | 5/8" | NPT 1/4" |
| SP-1506-0750 | 1-1/2" | 6" | 12-5/8" | 14-3/8" | 13" | 11/16" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1508-0750 | 1-1/2" | 8" | 14-5/8" | 16-5/8" | 15-1/4" | 11/16" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1510-0750 | 1-1/2" | 10" | 16-5/8" | 18-5/8" | 17-1/4" | 11/16" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1510-1000 | 1-1/2" | 10" | 16-5/8" | 18-5/8" | 17-1/2" | 11/16" | 2-3/4" | 1-3/4" | 1" | NPT 1/4" |
| SP-2006-0750 | 2" | 6" | 12-5/8" | 14-11/16" | 13-3/16" | 3/4" | 2-3/4" | 2-1/4" | 3/4" | NPT 1/4" |
| SP-2010-1000 | 2" | 10" | 16-5/8" | 18-5/8" | 17-1/4" | 11/16" | 2-3/4" | 2-1/4" | 1" | NPT 1/4" |
| SP-2016-1000 | 2" | 16" | 22-5/8" | 25" | 23-5/8" | 11/16" | 2-3/4" | 2-1/4" | 1" | NPT 1/4" |
| SP-1510-0750 | 1-1/2" | 10" | 16-5/8" | 18-1/2" | 17" | 3/4" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SP-1512-0750 | 1-1/2" | 12" | 18-5/8" | 20-1/2" | 19" | 3/4" | 2-3/4" | 1-3/4" | 3/4" | NPT 1/4" |
| SALID-F-SP-1510-1000 | 1-1/2" | 10" | 16-3/8" | 18-3/4" | 17-1/4" | 3/4" | 2-11/16" | 1-3/4" | 1" | NPT 1/4" |
| SALID-F-SP-1512-1000 | 1-1/2" | 12" | 18-7/16" | 20-7/8" | 19-3/8" | 3/4" | 2-5/8" | 1-3/4" | 1" | NPT 1/4" |
| SALID-F-SP-2010-1000 | 2" | 10" | 16-1/8" | 18-3/4" | 17-1/4" | 3/4" | 1-23/32" | 2-1/4" | 1" | NPT 1/4" |
| SALID-F-SP-2016-1250 | 2" | 16" | 22-1/2" | 25" | 23-1/4" | 7/8" | 2-3/4" | 2-1/4" | 1-1/4" | NPT 1/4" |
