Tie rod hydraulic cylinder,agricultural cylinder,2500PSI,Bore 2"-5"

  • Tie rod hydraulic cylinder,agricultural cylinder,2500PSI,Bore 2"-5"
Place of Origin China
Brand Name Salid
Certification ISO9001:2008
Model Number tie-rod 1102
Minimum Order Quantity 20
Price 30-90
Packaging Details plywood case
Delivery Time 25 work days
Payment Terms T/T
Supply Ability 50000 per month
Product Details
Leave a Message
Product Description

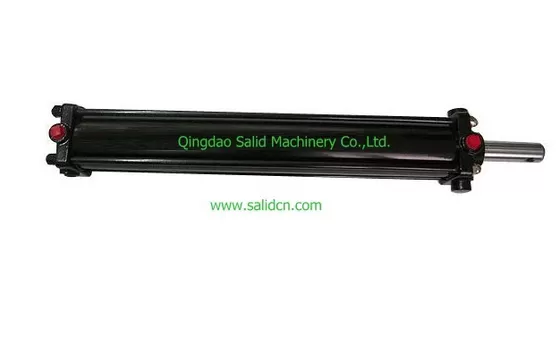

Tie rod hydraulic cylinder One side Pineye

Tie rod hydraulic cylinder,agricultural cylinder,2500PSI,Bore 2"-5" 0

Standard Features:
Double-acting applications;
Standard color: Black;
All Seals: Manufactured to US specification;
Ports: NPTF(SAE port or other can be available);
100% hydro-pressure test;
Rod surface treatment: Superior quality chrome plated.;
Apply LOCTITE to rod end thread;

NON ASAE
All SALID hydraulic NON ASAE cylinders are designed per ASAE requirements, however are not classified ASAE due to their varying pin to pin dimensions.

NON ASAE CYLINDER "TR SERIES
 technical parameters
Bore A* B C* E G H I J
2 10.25 0.189 3/8" NPTF(SAE 6#) 2.5 2.5 1.125 1.125 2.125
2.5 10.25 0.189 3/8" NPTF(SAE 6#) 2.5 2.5 1.125 1.125 2.125
3 10.25 0.189 1/2" NPTF(SAE 8#) 2.5 2.625 1.125 1.125 2.125
3.5 10.25 0.218 1/2" NPTF(SAE 8#) 2.5 2.625 1.125 1.125 2.125
4 10.25 0.244 1/2" NPTF(SAE 8#) 2.625 2.625 1.125 1.125 2.125
5 10.25 0.311 1/2" NPTF(SAE 8#) 3.465 2.75 1.375 1.25 2.185
Bore M P Q R* S T V W
2 1.625 10 1.125"-12 UNF 1 2 2 2.835 2.835
2.5 1.625 10 1.125"-12 UNF 1 2 2 3.15 3.15
3 1.625 12 1.250"-12 UNF 1 2 2.25 3.8 3.8
3.5 1.625 14 1.250"-12 UNF 1 2.25 2.25 4.25 4.25
4 1.625 16 1.250"-12 UNF 1 2.25 2.25 4.92 4.92
5 2.31 20 1.500"-12 UNF 1 3 2.5 5.985

5.985

We make high volume hydraulic cylinders,tie rod hydraulic cylinders,welded hydraulic cylinders and ram hydraulic cylinders

Tie rod hydraulic cylinders

Useness:Agricutural usness     2500PSI  3000PSI
