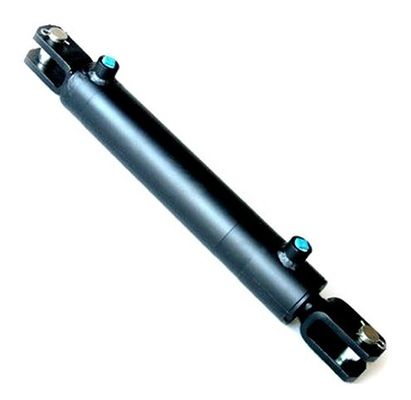

Welded cylinder,double acting cylinder,clevis type cylinder,CW line hydraulic cylinder

  • Welded cylinder,double acting cylinder,clevis type cylinder,CW line hydraulic cylinder
Place of Origin China
Brand Name Salid
Certification ISO9001:2008
Model Number WD001
Minimum Order Quantity 20
Price 30-300
Packaging Details Plywood case or steel case
Delivery Time 25 work days
Payment Terms T/T
Supply Ability 20000per month
Product Details
Maximum Stroke 3000mm Standard Or Nonstandard Standard
Structure Piston Cylinder Power Hydraulic
Body Material Steel
Leave a Message
Product Description

Welded cylinder,double acting cylinder,clevis type cylinder,piston hydraulic cylinder,

CW line hydraulic cylinder 3000PSI

STANDARD FEATURES:
Double-acting applications;
Heavy duty welded construction;
Standard color: Black;Red
All Seals: Manufactured to US specification;
Ports: SAE(NPTF port or other can be available);
100% hydro-pressure test;
Rod surface treatment: Superior quality chrome plated;
Apply LOCTITE to rod end thread.



MODEL BOREXSTROKE (inches) CENTER TO CENTER OF PIN(inches) WEIGHT(lbs)
retracted extended
SALID2004CW 2 X 4 14 1/4 18 1/4 14
SALID2006CW 2 X 6 16 1/4 22 1/4 16
SALID2008CW 2 X 8 18 1/4 26 1/4 18
SALID2008CW-ASAE 2 X 8 20 1/4 28 1/4 19
SALID2010CW 2 X10 22 1/4 30 1/4 20
SALID2012CW 2 X 12 24 1/4 34 1/4 21
SALID2014CW 2 X 14 26 1/4 38 1/4 23
SALID2016CW 2 X 16 28 1/4 42 1/4 25
SALID2016CW-ASAE 2 X 16 31 1/2 47 1/2 27
SALID2018CW 2 X 18 30 1/4 46 1/4 26
SALID2020CW 2 X 20 34 1/4 50 1/4 28
SALID2024CW 2 X 24 38 1/4 58 1/4 31
SALID2028CW 2 X 28 40 1/4 66 1/4 35
SALID2030CW 2 X 30 42 1/4 70 1/4 37
SALID2032CW 2 X 32 44 1/4 74 1/4 38
SALID2034CW 2 X 34 46 1/4 78 1/4 40
SALID2036CW 2 X 36 48 1/4 82 1/4 42
SALID2040CW 3 X 40 50 1/4 90 1/4 46
SALID2048CW 4 X 48 58 1/4 106 1/4 54
　
SALID2504CW 2 1/2 X 4 14 1/4 18 1/4 18
SALID2506CW 2 1/2 X 6 16 1/4 22 1/4 20
SALID2508CW 2 1/2 X 8 18 1/4 26 1/4 22
SALID2508CW-ASAE 2 1/2 X 8 20 1/4 28 1/4 23
SALID2510CW 2 1/2 X10 20 1/4 30 1/4 25
SALID2512CW 2 1/2 X 12 22 1/4 34 1/4 27
SALID2514CW 2 1/2 X 14 24 1/4 38 1/4 29
SALID2516CW 2 1/2 X 16 26 1/4 42 1/4 31
SALID2516CW-ASAE 2 1/2 X 16 31 1/2 47 1/2 34
SALID2518CW 2 1/2 X 18 28 1/4 46 1/4 34
SALID2520CW 2 1/2 X 20 30 1/4 50 1/4 36
SALID2524CW 2 1/2 X 24 34 1/4 58 1/4 40
SALID2528CW 2 1/2 X 28 38 1/4 66 1/4 45
SALID2530CW 2 1/2 X 30 40 1/4 70 1/4 47
SALID2532CW 2 1/2 X 32 42 1/4 74 1/4 49
SALID2534CW 2 1/2 X 34 44 1/4 78 1/4 51
SALID2536CW 2 1/2 X 36 46 1/4 82 1/4 54
SALID2540CW 2 1/2 X 40 50 1/4 90 1/4 60
SALID2548CW 2 1/2 X 48 58 1/4 106 1/4 72
　
SALID3004CW 3 X 4 14 1/4 18 1/4 21
SALID3006CW 3 X 6 16 1/4 22 1/4 24
SALID3008CW 3 X 8 18 1/4 26 1/4 26
SALID3008CW-ASAE 3 X 8 20 1/4 28 1/4 27
SALID3010CW 3 X10 20 1/4 30 1/4 29
SALID3012CW 3 X 12 22 1/4 34 1/4 31
SALID3014CW 3 X 14 24 1/4 38 1/4 34
SALID3016CW 3 X 16 26 1/4 42 1/4 36
SALID3016CW-ASAE 3 X 16 31 1/2 47 1/2 39
SALID3018CW 3 X 18 28 1/4 46 1/4 39
SALID3020CW 3 X 20 30 1/4 50 1/4 41
SALID3024CW 3 X 24 34 1/4 58 1/4 46
SALID3028CW 3 X 28 38 1/4 66 1/4 51
SALID3030CW 3 X 30 40 1/4 70 1/4 53
SALID3032CW 3 X 32 42 1/4 74 1/4 56
SALID3034CW 3 X 34 44 1/4 78 1/4 58
SALID3036CW 3 X 36 46 1/4 82 1/4 61
SALID3040CW 3 X 40 50 1/4 90 1/4 67
SALID3048CW 3 X 48 58 1/4 106 1/4 79
　
SALID3504CW 3 1/2 X 4 14 1/4 18 1/4 31
SALID3506CW 3 1/2 X 6 16 1/4 22 1/4 34
SALID3508CW 3 1/2 X 8 18 1/4 26 1/4 37
SALID3508CW-ASAE 3 1/2 X 8 20 1/4 28 1/4 39
SALID3510CW 3 1/2 X10 20 1/4 30 1/4 40
SALID3512CW 3 1/2 X 12 22 1/4 34 1/4 43
SALID3514CW 3 1/2 X 14 24 1/4 38 1/4 46
SALID3516CW 3 1/2 X 16 26 1/4 42 1/4 49
SALID3516CW 3 1/2 X 16 31 1/2 47 1/2 53
SALID3518CW 3 1/2 X 18 28 1/4 46 1/4 52
SALID3520CW 3 1/2 X 20 30 1/4 50 1/4 55
SALID3524CW 3 1/2 X 24 34 1/4 58 1/4 61
SALID3524-200CW 3 1/2 X 24 34 1/4 58 1/4 66
SALID3528CW 3 1/2 X 28 38 1/4 66 1/4 68
SALID3530CW 3 1/2 X 30 40 1/4 70 1/4 71
SALID3532CW 3 1/2 X 32 42 1/4 74 1/4 74
SALID3534CW 3 1/2 X 34 44 1/4 78 1/4 77
SALID3536CW 3 1/2 X 36 46 1/4 82 1/4 80
SALID3540CW 3 1/2 X 40 50 1/4 90 1/4 86
SALID3548CW 3 1/2 X 48 58 1/4 106 1/4 98
　
SALID4004CW 4 X 4 14 1/4 18 1/4 46
SALID4006CW 4 X 6 16 1/4 22 1/4 51
SALID4008CW 4 X 8 18 1/4 26 1/4 55
SALID4008CW-ASAE 4 X 8 20 1/4 28 1/4 57
SALID4010CW 4 X10 20 1/4 30 1/4 59
SALID4012CW 4 X 12 22 1/4 34 1/4 63
SALID4014CW 4 X 14 24 1/4 38 1/4 67
SALID4016CW 4 X 16 26 1/4 42 1/4 72
SALID4016CW-ASAE 4 X 16 31 1/2 47 1/2 76
SALID4018CW 4 X 18 28 1/4 46 1/4 76
SALID4020CW 4 X 20 30 1/4 50 1/4 80
SALID4024CW 4 X 24 34 1/4 58 1/4 88
SALID4028CW 4 X 28 38 1/4 66 1/4 97
SALID4030CW 4 X 30 40 1/4 70 1/4 101
SALID4032CW 4 X 32 42 1/4 74 1/4 105
SALID4034CW 4 X 34 44 1/4 78 1/4 109
SALID4036CW 4 X 36 46 1/4 82 1/4 113
SALID4040CW 4 X 40 50 1/4 90 1/4 121
SALID4048CW 4 X 48 58 1/4 106 1/4 137
　
SALID5004CW 4 X 4 19 3/4 23 3/4 95
SALID5006CW 4 X 6 21 3/4 27 3/4 102
SALID5008CW 4 X 8 23 3/4 31 3/4 108
SALID5010CW 4 X10 25 3/4 35 3/4 114
SALID5012CW 4 X 12 27 3/4 39 3/4 121
SALID5014CW 4 X 14 29 3/4 43 3/4 127
SALID5016CW 4 X 16 31 3/4 47 3/4 134
SALID5018CW 4 X 18 33 3/4 51 3/4 140
SALID5020CW 4 X 20 35 3/4 55 3/4 146
SALID5024CW 4 X 24 39 3/4 63 3/4 159
SALID5028CW 4 X 28 43 3/4 71 3/4 172
SALID5030CW 4 X 30 45 3/4 75 3/4 178
SALID5032CW 4 X 32 47 3/4 79 3/4 185
SALID5036CW 4 X 36 51 3/4 87 3/4 197
SALID5040CW 4 X 40 55 3/4 95 3/4 211
SALID5048CW 4 X 48 63 3/4 111 3/4 239
