Welded cylinder,double acting cylinder,clevis type cylinder,CW line hydraulic cylinder

I'm Online Chat Now

Welded cylinder,double acting cylinder,clevis type cylinder,CW line hydraulic cylinder

China Welded cylinder,double acting cylinder,clevis type cylinder,CW line hydraulic cylinder supplier

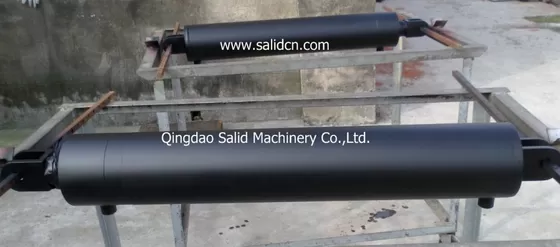

Large Image :  Welded cylinder,double acting cylinder,clevis type cylinder,CW line hydraulic cylinder

Product Details:

Place of Origin: China
Brand Name: Salid
Certification: ISO9001:2008
Model Number: WD003

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: 30-300
Packaging Details: Plywood case or steel case
Delivery Time: 25 work days
Payment Terms: T/T
Supply Ability: 20000per month
Contact Now
Detailed Product Description

Welded cylinder,double acting cylinder,clevis type cylinder,piston hydraulic cylinder,

CW line hydraulic cylinder 3000PSI

STANDARD FEATURES:
Double-acting applications;
Heavy duty welded construction;
Standard color: Black;Red
All Seals: Manufactured to US specification;
Ports: SAE(NPTF port or other can be available);
100% hydro-pressure test;
Rod surface treatment: Superior quality chrome plated;
Apply LOCTITE to rod end thread.



MODEL BOREXSTROKE (inches) CENTER TO CENTER OF PIN(inches) WEIGHT(lbs)
retracted extended
SALID2004CW 2 X 4 14 1/4 18 1/4 14
SALID2006CW 2 X 6 16 1/4 22 1/4 16
SALID2008CW 2 X 8 18 1/4 26 1/4 18
SALID2008CW-ASAE 2 X 8 20 1/4 28 1/4 19
SALID2010CW 2 X10 22 1/4 30 1/4 20
SALID2012CW 2 X 12 24 1/4 34 1/4 21
SALID2014CW 2 X 14 26 1/4 38 1/4 23
SALID2016CW 2 X 16 28 1/4 42 1/4 25
SALID2016CW-ASAE 2 X 16 31 1/2 47 1/2 27
SALID2018CW 2 X 18 30 1/4 46 1/4 26
SALID2020CW 2 X 20 34 1/4 50 1/4 28
SALID2024CW 2 X 24 38 1/4 58 1/4 31
SALID2028CW 2 X 28 40 1/4 66 1/4 35
SALID2030CW 2 X 30 42 1/4 70 1/4 37
SALID2032CW 2 X 32 44 1/4 74 1/4 38
SALID2034CW 2 X 34 46 1/4 78 1/4 40
SALID2036CW 2 X 36 48 1/4 82 1/4 42
SALID2040CW 3 X 40 50 1/4 90 1/4 46
SALID2048CW 4 X 48 58 1/4 106 1/4 54

SALID2504CW 2 1/2 X 4 14 1/4 18 1/4 18
SALID2506CW 2 1/2 X 6 16 1/4 22 1/4 20
SALID2508CW 2 1/2 X 8 18 1/4 26 1/4 22
SALID2508CW-ASAE 2 1/2 X 8 20 1/4 28 1/4 23
SALID2510CW 2 1/2 X10 20 1/4 30 1/4 25
SALID2512CW 2 1/2 X 12 22 1/4 34 1/4 27
SALID2514CW 2 1/2 X 14 24 1/4 38 1/4 29
SALID2516CW 2 1/2 X 16 26 1/4 42 1/4 31
SALID2516CW-ASAE 2 1/2 X 16 31 1/2 47 1/2 34
SALID2518CW 2 1/2 X 18 28 1/4 46 1/4 34
SALID2520CW 2 1/2 X 20 30 1/4 50 1/4 36
SALID2524CW 2 1/2 X 24 34 1/4 58 1/4 40
SALID2528CW 2 1/2 X 28 38 1/4 66 1/4 45
SALID2530CW 2 1/2 X 30 40 1/4 70 1/4 47
SALID2532CW 2 1/2 X 32 42 1/4 74 1/4 49
SALID2534CW 2 1/2 X 34 44 1/4 78 1/4 51
SALID2536CW 2 1/2 X 36 46 1/4 82 1/4 54
SALID2540CW 2 1/2 X 40 50 1/4 90 1/4 60
SALID2548CW 2 1/2 X 48 58 1/4 106 1/4 72

SALID3004CW 3 X 4 14 1/4 18 1/4 21
SALID3006CW 3 X 6 16 1/4 22 1/4 24
SALID3008CW 3 X 8 18 1/4 26 1/4 26
SALID3008CW-ASAE 3 X 8 20 1/4 28 1/4 27
SALID3010CW 3 X10 20 1/4 30 1/4 29
SALID3012CW 3 X 12 22 1/4 34 1/4 31
SALID3014CW 3 X 14 24 1/4 38 1/4 34
SALID3016CW 3 X 16 26 1/4 42 1/4 36
SALID3016CW-ASAE 3 X 16 31 1/2 47 1/2 39
SALID3018CW 3 X 18 28 1/4 46 1/4 39
SALID3020CW 3 X 20 30 1/4 50 1/4 41
SALID3024CW 3 X 24 34 1/4 58 1/4 46
SALID3028CW 3 X 28 38 1/4 66 1/4 51
SALID3030CW 3 X 30 40 1/4 70 1/4 53
SALID3032CW 3 X 32 42 1/4 74 1/4 56
SALID3034CW 3 X 34 44 1/4 78 1/4 58
SALID3036CW 3 X 36 46 1/4 82 1/4 61
SALID3040CW 3 X 40 50 1/4 90 1/4 67
SALID3048CW 3 X 48 58 1/4 106 1/4 79

SALID3504CW 3 1/2 X 4 14 1/4 18 1/4 31
SALID3506CW 3 1/2 X 6 16 1/4 22 1/4 34
SALID3508CW 3 1/2 X 8 18 1/4 26 1/4 37
SALID3508CW-ASAE 3 1/2 X 8 20 1/4 28 1/4 39
SALID3510CW 3 1/2 X10 20 1/4 30 1/4 40
SALID3512CW 3 1/2 X 12 22 1/4 34 1/4 43
SALID3514CW 3 1/2 X 14 24 1/4 38 1/4 46
SALID3516CW 3 1/2 X 16 26 1/4 42 1/4 49
SALID3516CW 3 1/2 X 16 31 1/2 47 1/2 53
SALID3518CW 3 1/2 X 18 28 1/4 46 1/4 52
SALID3520CW 3 1/2 X 20 30 1/4 50 1/4 55
SALID3524CW 3 1/2 X 24 34 1/4 58 1/4 61
SALID3524-200CW 3 1/2 X 24 34 1/4 58 1/4 66
SALID3528CW 3 1/2 X 28 38 1/4 66 1/4 68
SALID3530CW 3 1/2 X 30 40 1/4 70 1/4 71
SALID3532CW 3 1/2 X 32 42 1/4 74 1/4 74
SALID3534CW 3 1/2 X 34 44 1/4 78 1/4 77
SALID3536CW 3 1/2 X 36 46 1/4 82 1/4 80
SALID3540CW 3 1/2 X 40 50 1/4 90 1/4 86
SALID3548CW 3 1/2 X 48 58 1/4 106 1/4 98

SALID4004CW 4 X 4 14 1/4 18 1/4 46
SALID4006CW 4 X 6 16 1/4 22 1/4 51
SALID4008CW 4 X 8 18 1/4 26 1/4 55
SALID4008CW-ASAE 4 X 8 20 1/4 28 1/4 57
SALID4010CW 4 X10 20 1/4 30 1/4 59
SALID4012CW 4 X 12 22 1/4 34 1/4 63
SALID4014CW 4 X 14 24 1/4 38 1/4 67
SALID4016CW 4 X 16 26 1/4 42 1/4 72
SALID4016CW-ASAE 4 X 16 31 1/2 47 1/2 76
SALID4018CW 4 X 18 28 1/4 46 1/4 76
SALID4020CW 4 X 20 30 1/4 50 1/4 80
SALID4024CW 4 X 24 34 1/4 58 1/4 88
SALID4028CW 4 X 28 38 1/4 66 1/4 97
SALID4030CW 4 X 30 40 1/4 70 1/4 101
SALID4032CW 4 X 32 42 1/4 74 1/4 105
SALID4034CW 4 X 34 44 1/4 78 1/4 109
SALID4036CW 4 X 36 46 1/4 82 1/4 113
SALID4040CW 4 X 40 50 1/4 90 1/4 121
SALID4048CW 4 X 48 58 1/4 106 1/4 137

SALID5004CW 4 X 4 19 3/4 23 3/4 95
SALID5006CW 4 X 6 21 3/4 27 3/4 102
SALID5008CW 4 X 8 23 3/4 31 3/4 108
SALID5010CW 4 X10 25 3/4 35 3/4 114
SALID5012CW 4 X 12 27 3/4 39 3/4 121
SALID5014CW 4 X 14 29 3/4 43 3/4 127
SALID5016CW 4 X 16 31 3/4 47 3/4 134
SALID5018CW 4 X 18 33 3/4 51 3/4 140
SALID5020CW 4 X 20 35 3/4 55 3/4 146
SALID5024CW 4 X 24 39 3/4 63 3/4 159
SALID5028CW 4 X 28 43 3/4 71 3/4 172
SALID5030CW 4 X 30 45 3/4 75 3/4 178
SALID5032CW 4 X 32 47 3/4 79 3/4 185
SALID5036CW 4 X 36 51 3/4 87 3/4 197
SALID5040CW 4 X 40 55 3/4 95 3/4 211
SALID5048CW 4 X 48 63 3/4 111 3/4 239
